The game of the Four Seasons: making gaming counters

The game board and the seven sided dice for the medieval Game of the Four Seasons, called the World being ready, the only remaining pieces to be made were the gaming counters. I will first provide some medieval examples of gaming counters for 'tables' (backgammon and tric trac like games) and then continue with the making and decoration process of the gaming pieces.

Medieval gaming counters

Medieval gaming counters or tablemen have been commonly encountered during archaeological excavations, though less than dice. This is probably due to the fact that they are not always easily recognisable. Medieval gaming counters were made of bone, ivory, leather, stone, ceramics, metal (lead, copper alloy) or wood and vary in size, thickness, and decoration. There are very plain gaming counters, but also pieces that are elaborately carved - each one with a different image.

Left: Three medieval bone gaming pieces found in Friesland, the Netherlands (photo courtesy Rijksmuseum voor Oudheden, Leiden, the Netherlands). Sizes 0.28 x 1.67 cm, 0.3 x 2.04 cm, and 0.45 x 2.14 cm. The gaming counters are decorated with concentric circles. Right: Six bone and antler playing pieces of a set of thirty from a backgammon game found at Gloucester Castle, UK. All pieces are decorated with different designs. 44 mm diameter, 7 mm thickness. Dated between 1090-1120.

Left: Leather gaming counters made from a shoe sole. Right: Four decorated wooden gaming counters. Both are excavated from 'Het Steen', a 14th century town prison at the town square in Mechelen, Belgium (details from L. Troubleyn et al., 2009. Journal of Archeology in the Low Countries 2).

Left: A cast copper alloy gaming piece dating from the 13-14th century. The upper face of the object is decorated in moulded relief with an advancing stag. The rear of the object is undecorated and flat. Thickness 8.02 mm, weight 80.2 g and 41.06 mm diameter. Photo from the finds database of the British Museum. Right: Four early medieval tablemen of a set of 24 round stone discs found at Whithorn, UK. A number of gaming boards was also found at the site. The gaming pieces measure between 2.3 and 3 cm diameter. One tablemen with a cross scratched on one face may be to represent a special piece, such as the king in a game of hnefatafl (King's Board). Photo from the Future museum UK.

Left: 11th century wooden backgammon pieces from Colletire, France. Right: Trictrac board and gaming pieces found in an Augustinerkloster in Freiburg, Germany. The board is likely made after 1278.

14th century wooden tric-trac board and gaming piece excavated at the Breestraat, Leiden, the Netherlands. Rijksmuseum van Oudheden, Leiden, the Netherlands. The board fragment measures 26.5 x 12.5 cm  and is inlaid with different types of wood. The tableman has an incised circle decoration and a diameter of 2.7 cm.

Making the gaming counters

Two medieval wooden gaming counters from London excavations. Left: Turned boxwood counter, ca. 36 mm with central dots and grooves around the edge. Right: Apple wood, 37 mm with concentric circles and groove around the edge. Both gaming counters have black staining, indicating these were black painted tablemen. From the book: The medieval household, daily living c. 1150-1450. Medieval finds from excavations in London 6 by G. Egan.


The gaming counter from London (UK) served as (decorative) model for our gaming counters. I have made our gaming pieces from beech. The first step was to transform the square pieces of wood into a round sticks by simple turning on a lathe. Then the sticks were cut by bandsaw into the proto gaming pieces. A block clamped on the saw-table was used to ensure that the gaming pieces were of equal thickness. As I wanted to add some circular decoration on the counters, an additional round of turning was needed. For this a special jig was made in which the proto counters were clamped tight and that allowed the front and backside to be decorated. The edges of the gaming counters were also slightly rounded and each counter was sanded manually.

Left: Making the beech sticks. First the square was planed octagonal (see marks on the square piece of wood) for ease of turning and then turned to a diameter of 2.8 cm. Several sticks can be seen in the background. Right: Cutting gaming pieces with a band saw. A block of wood is clamped onto the table, to produce gaming pieces with an equal thickness of 8 mm.

Left: Another view of the bandsaw, showing how the equal thickness is achieved. Right: The proto gaming pieces. Four sets of twelve gaming counters are needed for the game of the Four Seasons.

Left: The special plywood jig for turning screwed on the faceplate. The hole for the gaming counter was first turned out of the plywood block. The hole was slightly tapered to have the gaming counter secured enough for turning. When the proto gaming piece happened to be too small it was additionally fixed with double adhesive tape. Right: A slot was made in the jig to be able to extract the finished decorated gaming counter with the help of a small screwdriver.

Right: The bottom of a jig used for sanding the gaming counters. A shallow hole was made in a piece of wood to hold the gaming piece. Right: The jig offers a better grip when sanding.

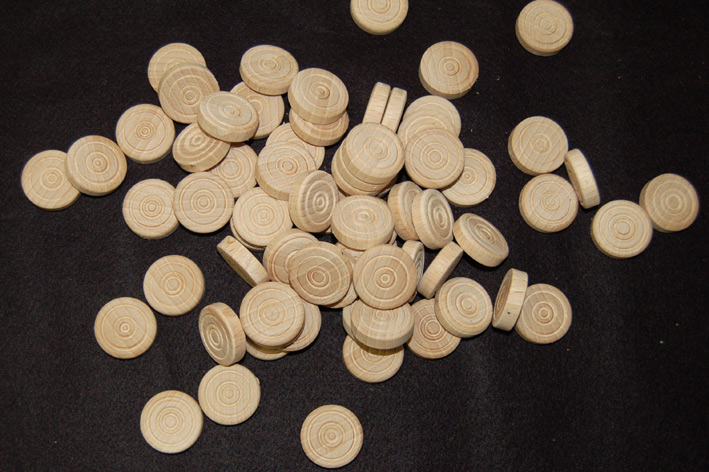

A heap of finished unpainted gaming counters.

Three unpainted gaming counters decorated with concentric rings. The edges are rounded.

Painting the gaming counters

The Libro de los Juegos of Alfonso X the Wise describes the colours of the four seasons for four-season chess and the tables game of the four seasons called the world:

'And because as we said above in the first season, spring, all things grow and men are refreshed and the trees and plants turn green the reason why air is its element is clearer than for any other season; therefore they made this season green. And the summer which is hotter and drier than the other seasons they made it like fire, which is of this nature. And therefore they made this season red for it element which also is. The autumn is dry and cold because its element is earth; it is more temperate than summer because it tends more toward cold than heat. The things that burn in summer, are born and refreshed in this season. And because its element is earth, its nature coldness and dryness therefore they made this season’s colour black. Winter they gave the element water which is cold and wet because in that season there are great cold, ice, snow, and rains. And because its element is water they made its colour white.'

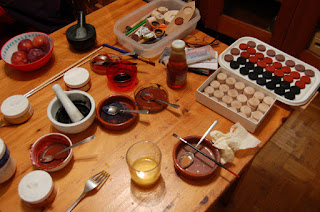

Left: painting the black gaming pieces. One side can be painted at a time, a quarter of an hour later the other side can be painted. Right: various paints and the basic egg tempera in a glass. on the far right the finished red, black and purple pieces can be seen, as well as the box with unpainted tablemen.

I have painted the gaming pieces with egg tempera paint according to the recipe by Kathy Storm found on her blog Medieval arts and crafts. This consists of two parts of dry white wine and one part egg yolk. The pigments are added to this to form the tempera paint. Not all pigments used produced opaque paints (e.g. green and white), but adding more pigments decreased the ease of painting considerably. Therefore most gaming counters had several layers of paint. I used pigments of the Dutch paint mill "De Kat" that  presumably also were available during the Middle ages. These were:

• red- summer - Venetian red
• black - autumn - bone black
• white - winter - double washed white chalk
• green - spring - Italian green earth

The four colours for the game of the four seasons called the world.

I also painted gaming counters for an astronomical tables version for seven persons that is found as well in the book of games by Alfonso X. The counters for that game are:

• red - Mars - Venetian red
• black - Saturn - bone black
• white - Moon - double washed white chalk
• green - Jupiter - Italian green earth
• yellow - Sun - yellow ochre
• purple - Venus - mix of blue chalk, Venetian red and white chalk
• many different colours - Mercury - black, red and yellow circles

The coloured gaming counters for the astronomical tables: black, yellow, red, purple,

white, green and many different colours.



The completed Game of the Four Seasons, called the World as depicted in the Libro de los Juegos by Alfonso X,
folio 89v.

I did have a wooden box for storing the counters, but eventually a box like the one shown below might be more appropriate ... The next post will continue with playing of the Game of the Four Seasons, called the World.

Painted wooden box for game pieces, dated ca. 1300 and made  in Germany. Sizes 7.9 x 26.4 x 9.2 cm.
Metropolitan Museum of Art, New York, USA.

The game of the Four Seasons: making 7-sided dice



Medieval dice

Seven-sided dice, which are used for the Game of the Four Seasons, called the World are not common medieval dice. Common medieval dice are six-sided dice, just like ours. The book of Alfonso X the Wise describes how they are made, and how they should look like:

f. 84v: Showing the seven-sided dice.

"And we say that dice should consist of three squared shapes of six equal sides, all equal in size and perfectly square because otherwise they will not roll as often on one side as another and it would be trickery more than luck. And thus this is the first of the ways of cheating, as we will later tell17, in which those who wish to cheat make crooked dice.
And it is to have on each one of the six sides, pips in this manner: on the one side six, and on the other five, on the other four, on the other three, on the other two and on the other one, so that twenty-one pips come on each die, and so that sixty-three pips come on three dice.

And the pips should be placed in this manner: opposite the six-side, the one; and opposite the five, the two; and opposite the four, the three. And these dice can be made of wood, or of stone, or of bone, or of any metal, but especially are best the ones made of bone, the heaviest to be found, more than any other material and they fall more equally and more squarely on any type of surface."

Indeed most unearthed medieval dice are made of bone, antler, jet, clay or wood. However, in medieval times the positioning of the pips could be different from Alfonso's description (or the from Roman or Modern times). The second system, only found during the Middle ages, was 1 opposite 2, 3 opposite 4 and 5 opposite 6 (instead of the opposite sides totalling 7). Medieval dice are small, compared to modern ones, sizes between 9-12 mm are common. False medieval dice also existed. A London find did contain a whole set of false dice. Some were weighted, or had more sixes or ones.

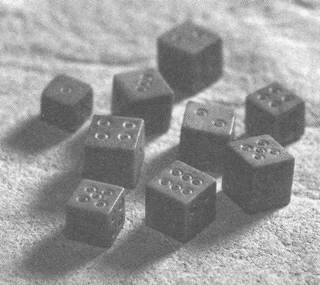

Left: Bone dice from Amersfoort, the Netherlands dating from the 14th century.  Right: Two systems of arranging pips from 12/13th century dice made of jet from York, UK. 11079 is our current system, while 11078 uses the alternative medieval system.

Two sets of Roman six-sided dice, currently on auction (14 October) at Hermann Historica (starting bid 3-400 Euro for 20 dice which are also perfect for medieval re-enactment). You can see the concentric circles of the pips, which are also very common during medieval times. Some have two concentric rings, other only one (left photo). The right photo shows some dice with sides that are rounded off and decorated. White dice are made of bone, the black of horn.

Seven-sided dice

There are several games in the "Libro de los Juegos" that make use of 7-sided dice, like Decimal chess, 4-season chess, and the game of the four seasons called the world. Folio 84 describes how the 7-sided dice are made. The book also describes an eight-sided dice, which looks like our modern one (used e.g. in fantasy roleplaying games).

"[f. 84]
And these dice are made like this: they have seven sides and the side with the highest number of pips is seven. They could not be made in another way for this game.
Because the shape of this die is uneven it falls edge up, with two sides showing. The side closest to the shooter is his. If they fall so that it cannot be determined which face to use, they are to be thrown until it can.
.....
There are other seven-sided dice than the ones we describe above. And this is how they are: they have two flat ends, the upper end with seven and the lower with six. The sides have five faces and because the sides are odd in number they cannot help but fall edge up. And for these five sides the play is the same as we described before. And this is their diagram and how they are made. [f. 84v]"

Making the seven-sided dice

I had some antler at home, which was at the basis solid white like bone. This made it very suitable for to make my 7-sided dice. Antler is worked similar like bone. First, I cut an 12.5 mm thick slice from the antler and ground it flat using sandpaper.

Left: The piece of antler, the two slices cut of (for two 7-sided dice) and two test 6-sided dice. Right. Sanding the slices of antler on a 150 grit sandpaper.

Then I glued a paper pattern of the pentagon on the antler slice with water-soluble glue. Then I used a hand held rotary tool (Dremel) with a ceramic cutter to cut the (remaining four) sides of the die. These sides were also sanded to have an acceptable die with equal squares. My first 7-sided die had squares of 12.5 mm, which made the pentagon side disproportionate large. My second die had rectangles of 11 by 12.5 mm, which gives a better proportion in comparison with the pentagon side.

 Left: Laying out the pattern on the antler slice. Right: The roughly cut seven-side die.

The blank die being ready, the next step was to drill the pips. King Alfonso told that the 6 and the 7 were on the pentagon, but no mentioning was made for the arrangement of the 1 to 5 pips. I decided just to use the 1 to 5 order on the rectangles. The second problem was to drill the concentric circles for the pips. In medieval times this was done with a pump drill with some sort of toothed drill bit. I did not have these tools, so I had to improvise. For the concentric circle I used a sanding drum holder for my rotary hand tool and sharpened the edge. For the central dot, I used a cutter from the dentist (They use them only once and you can get them for free at your yearly visit). I also devised a jig to make the positioning of the dice under the drill stand easier (one-dimensional instead of two-dimensional), and another to hold the pentagon.

Left: The concentric ring drill bit made from a drum sander. Another drum sander is next to the pliers. Right: The bench clamp holding the the die moves along a fixed ridge, making the positioning of the drill easy and one-dimensional. First, all circles were drilled for this position, then the circle bit was changed for the dental cutter. After that, the ridge was moved to a new position to start again with some new pips.

Left: The bench clamp holding the jig for the pentagon. For the drilling of the rectangular sides, the die is just held in the clamp with some rubber protective edge. Right: Positioning of the die under the drill. First the concentric ring, then the centre dot.

Left: A circular drawing by pencil is made on the pentagon, which is in turn dived into six parts. This shows the points where the pips should be drilled at equal distance. Right: The pentagon in the jig,  Pips can be drilled in sets of two, before the ridge has to be moved in a new position. This side will have seven pips, the middle three are finished, the two left pips only have the concentric circles.

Left: The two seven-sided dice on the game board of the Four Seasons, called the World. Right: A close up of the dice.

f. 85v: A game of Decimal Chess using seven-point tables, seven-sided dice and seventeen pieces on each side. Alfonso is named as one of the players here.

The seven-sided dice throw reasonably fair, considering the fact that the pentagon sides are (slightly) larger. Next post will on making the game counters for the Game of the Four Seasons, called the World.

The game of the Four Seasons called the World

The Libro de los Juegos by Alfonso X 'The Wise' from 1283 in Spain describes a collection of medieval games of the mind (chess), of luck (dice), and of a combination of luck and the mind (tables). The latter are an assortment of backammon, alquerque and nine-men-morris like games. But also some more 'exotic' board games are described like the Game of the Four Seasons, called the World. This tables (backammon) variant is special because it is played by four persons, uses a round playing field and seven-sided dice. Each player has 12 game counters that have colours that correspond to the seasons: Spring’s pieces are green; summer’s are red; autumn’s bare lack, and winter’s are white.

This is the board of tables of the four seasons, called the world



The illustration of the game of the Four Seasons, called the World on folio 89v. Note that here  six-sided die are shown, while the text refers to seven sided dice.

The complete text of the game is found on folio 89 of the book and is as follows:

"This is the board of tables of the four seasons, called the world, which begins like this. Since we have told about the board of the four seasons [This is the four season chess described on the previous pages in the book], as the ancient wise mean ordered it, now it is fitting that we show the tables board that is played after that some manner.

This board is squared and the points are placed in a circle. The circle is divided into four parts; each part has six spaces that are carved out in semi-circles in which the pieces fit.

And on this board four men are to play, each with his pieces of his colour according to the colours of the chess that we have named. And each one of these players is to have twelve pieces of the  colours of the aforementioned chessmen which are these: green, red, white, and black – for a total of forty-eight. And they are played with the [7-sided] dice of this same chess and the players roll to see who plays first. And then the player to his right and so on around.

And the first to begin is to place his pieces according to the rolls of the dice as in doze canes [another game described earlier] and all the others do likewise.

And once they all have placed all their pieces each must bring his pieces to where the third player first entered which is across from his own, by playing around to his right according to the rolls of the dice. And when one makes a roll that he cannot use, let the player who to his right use it. And if he cannot, the third. And if he cannot, the fourth.

And also in this game if a roll is made that allows the capture of an unguarded piece, it is to be captured. The one whose piece was captured must return it to where it was first placed.
And no pieces are to be borne off until each player has his pieces in the opposite quarter as is stated above.
And the player who first should bear off all his pieces will beat the player to his right and so on around.
And this is the explanation of this game. And this is the diagram of the board and of the pieces and of their colours and of the arrangement."

I thought this medieval Game of the World was quite interesting to make, because it had an unusual board, was using unusual seven-sided dice and was played by four persons. Not the usual medieval game. I also thought it was a project perfectly suitable to make during the summer. It proved however to be more challenging than I thought.

Part I: The board

For the board basis I had some maple (which was a left-over from two other projects - two three-legged medieval/renaissance chairs and a rocking dragon) and some walnut for the circle and sides of the board. Walnut and maple, being whitish and dark brown, make a nice contrasting combination, which I also had used for the chairs and the dragon. The amount of walnut left was however limited. I had to saw the board into two by hand, before I could plane it to a thickness of 6 mm. The maple board basis had a thickness of 11 mm and was 33.8 cm square (= final sizes). Around it a walnut frame was added, also 6 mm thick, making the total game board size 35 cm square and 17 mm thick.

Left: the maple board with the outlines of the outer circle on it. Right: sawing the walnut board into two halves.



Left: the two sawn pieces of walnut. Right: the same pieces now planed to 6 mm.

The two halves of the walnut board were glued together with modern wood glue (though medieval casein glue, according to recipes in Theophilus 'on divers arts' and the appendix in Henry Mercer 'Ancient carpenters tools' works equally well, but is more laborious to make). After smoothing the glued board using a scraper the circular ring was transferred by pen and compass.

Left: drawing of the circle for the game pieces. Right: A pin in the middle of the circle also helps positioning the ruler.

The halve circular spaces in which the game counters would fit (six per square of the board) were drilled using a 35 mm Forstner bit in a machine drill. Forstner bits are ideal for this work as they are very precise and stable. A special jig was made in which the walnut board rotated on a pin in the middle, making the positioning of the drill for each space very easy and exact.

The drill jig for the "game counter half circles". The walnut board is fixed in the middle with a nail to another board which in turn is fixed to the machine drill. The walnut board can rotate, but the position of the drill bit to the centre remains the same.

Left: positioning of the Forstner bit is very easy. Right: all the holes for the game pieces are drilled, the four places where the outer part is still attached  to the centre is the place where the pins dividing the season will be.

The outside of the circle was still roughly sawn and unfinished at this stage. I used a router which was fixed to the centre of the walnut board to make the circle perfectly round. Next I used a coping saw to cut the pins that divide de four seasons of the circle. These pins were smoothed with small needle files and a carving knife.

The router rotates on the centre. The centre pin is also fixed to the work bench for stability.

Then, the walnut circle being finished, it was glued onto the maple board. The size of the maple board was then planed to exactly match the size of the circle. Then the four pieces of the side frame was glued to the game board, and the back of the board smoothed with a hand-plane. Finally, for extra fixation and for decorative effect, four small 6 mm maple dowels were added to the each side.

 Glueing the side frame of the game board.

Left: making maple dowels using a Lee Nielsen dowel plate. Right: Adding the dowels to the side frame.The protruding parts were cut off with a Japanese saw and smoothed with a plane.

At the end, the board of the Four Seasons, called the World was finished with linseed oil. Next post: will continue with part 2, the making of the 7-sided dice.

The finished board, with linseed oil coating.
