The strycsitten construction plan

I had measured one replica strycsitten at Loevestien (see previous post), however I wanted to know the approximate proportions of the other (stryc)sittens as well. I roughly determined the proportions in the table below, and used 44 cm as the standard seating depth for the painted strycsittens.

The image below (hopefully) shows what I mean with the different proportions. The decorated 'triangles' below the seating and armrest are given as a proportion of the height of the feet beneath the seating and above, respectively.

Source	Approx. size L x D x H	Proportion upper panel and lower “triangle”	Height proportion above : below seating	Feetrest details	Other details
Campin – St. Barbara	150 x 44 x 80	1/4, 1/4	2 : 3	Feet inside
Campin - Merode	180 x 44 x 80	1/4, 1/3	2 : 3	Feet inside	Seating boards are inside frame, lions on arm
Meister Schoppingen	180 x 44 x 75	1/4, 1/2	2 : 3	Feet inside, plank with hook	Lions on arm
V/d Weyden - Annunciation			1 : 1	none	Fixed backrest
Rijksmuseum	78 x 50 x 75	-	2 : 3	none	French type, closed panels
Loevestein	224 x 44 x 73	1/4, 1/3	1 : 1	Two attached to frame
Stollentruhe	116 x 42 x 85	-	2 : 3	none	German type
Stollentruhe	146 x 37 x 77	-	2 : 3	none	German type
Schlossmueum Berlin	194 x 55 x 86	-	2 : 3	none	French type, closed panels

The strycsitten I wanted to make is intended to be used at the dining table in my living room. (Although suitable for re-enactment, its size is far too large to move it around in a simple car.) My dining table is 1.40 metres long, so the length of the strycsitten had to be approximately like that. Furthermore, the seating height had to be comfortable for modern length persons (e.g. me and my family), meaning a seating height of approximately 45 cm. My first intention was to use the Loevestein plan for the strycsitten, but later I changed it to the one depicted in the painting of the Meister of Schoppingen. In the end, my plan was an adaption of the latter and looked like this:

The strycsitten also includes a footrest. The black dots in the plan are dowel pins, securing the mortise and tenon joints. A scale bar in centimetres is provided in the plan. Actually I drew the plan shown above after the construction of the strycsitten. The sketch I used during construction (see below) was much more chaotic and had measurements all over.

Medieval toolchest: The two-handed saw

One of the items in my medieval toolchest is a large two-handed saw. In many medieval miniatures of building sites this typical saw can be seen, e.g. in 'Noah Building the Ark' (actually a house) in the Bedford Book of Hours (Paris, MS 18850, f 125 verso)(see detail of the miniature on the left) It loosely resembles a two-handed cutlass. It has a long straight handle and a round guard between the blade and the handle. The saw is long and has a length between 70-150 centimeters. The teeth of the saw are usually shown pointed forward, indicating that it is used on the push. Also the position of the men using the saw suggests a push action. The saw is typically used for cutting planks or beams to length.

My two-handed saw is 90 cm long and was made by Dennis Riley, a re-enactment blacksmith specialising in tools (daegrad.co.uk). The saw needed some extra sharpening and setting; the marks of the sawset (the light indents on alternating teeth) can be seen on the picture on the right.


Below you see the saw being used in the Historic Open Air Museum in Eindhoven, the Netherlands by another re-enanactor. He had great difficulty using the saw on the push as he had first fixed the boards to the attic beam with nails and could not use his full muscle power to wield the saw.

Some more strycsitten images

Once you start looking for strycsittens, you will notice them everywhere. I have found some more images in some of my books: one German style strycsitten.and three French types. Again most of the strycsittens are placed before the hearth.

This is a German type from a painting. The original is from the Bayerische Landesambt für Denkmalpflege, München, Germany.

This miniature is from  the Pierpont Morgan Library Ms 705. Le mortifiement de vaine plaissance by Rene I, duke of Anjou, third quarter 15th century.

 This miniature is from the Le livre des trois vertus by Christine le Pisan, 15th century. Bernicke rare book and manuscript library, Yale university, Ms 427.

This miniature I  found in one of my medieval cookbooks. I have no idea of the origin of this miniature.



German type strycsitten from first half of the 16th century.

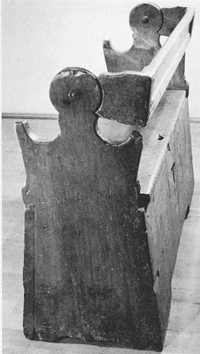

Pine wood, height 85 cm, depth 42 cm, length 116 cm. Tiroler Volkskunstmuseum, inv.nr.20265.

The replica strycsitten of castle Loevestein

The castle of Loevestein in Poederooyen, the Netherlands is famous for the escape of Hugo de Groot in a book chest during the 80 years war. The castle claims to posess the original escape chest (however they are not alone in that claim). Inside the castle some fine reproduction medieval furniture can be found, made by 'Vakwerk in Hout' (http://www.vakwerkinhout.nl/index.html). One of the pieces  is a large strycsitten which is displayed (and used) in the entrance room. This strycsitten looks similar to that on the painting of St. Barbara by Robert Campin.

Usually you can only visit the castle by guided tour, but they were willing to let me stay in the rooms and take measurements and photo's at leasure.

Of course the strycsitten is positioned in front of the hearth. Is is approximately 2.5 meters long and needs the support of the extra legs in the middle, as well as the diagonal beams.

The three legs at each side of the strycsitten rest upon a wooden frame. On both sides of the strycsitten are foot rests attached to the same frame. The strycsitten is constructed using mortise and tenon joints, secured by wooden pins.

The turnable backrest has a metal (bronze) cover. Also the turning arm is of metal.

The underside of the strycsitten shows that the legs are only connected to each other on top by a central beam and by the wooden frame on the floor. The seating boards are loose, i.e. not fixed to the strycsitten.

This photo gives you an impression of the amount of persons seating on this strycsitten

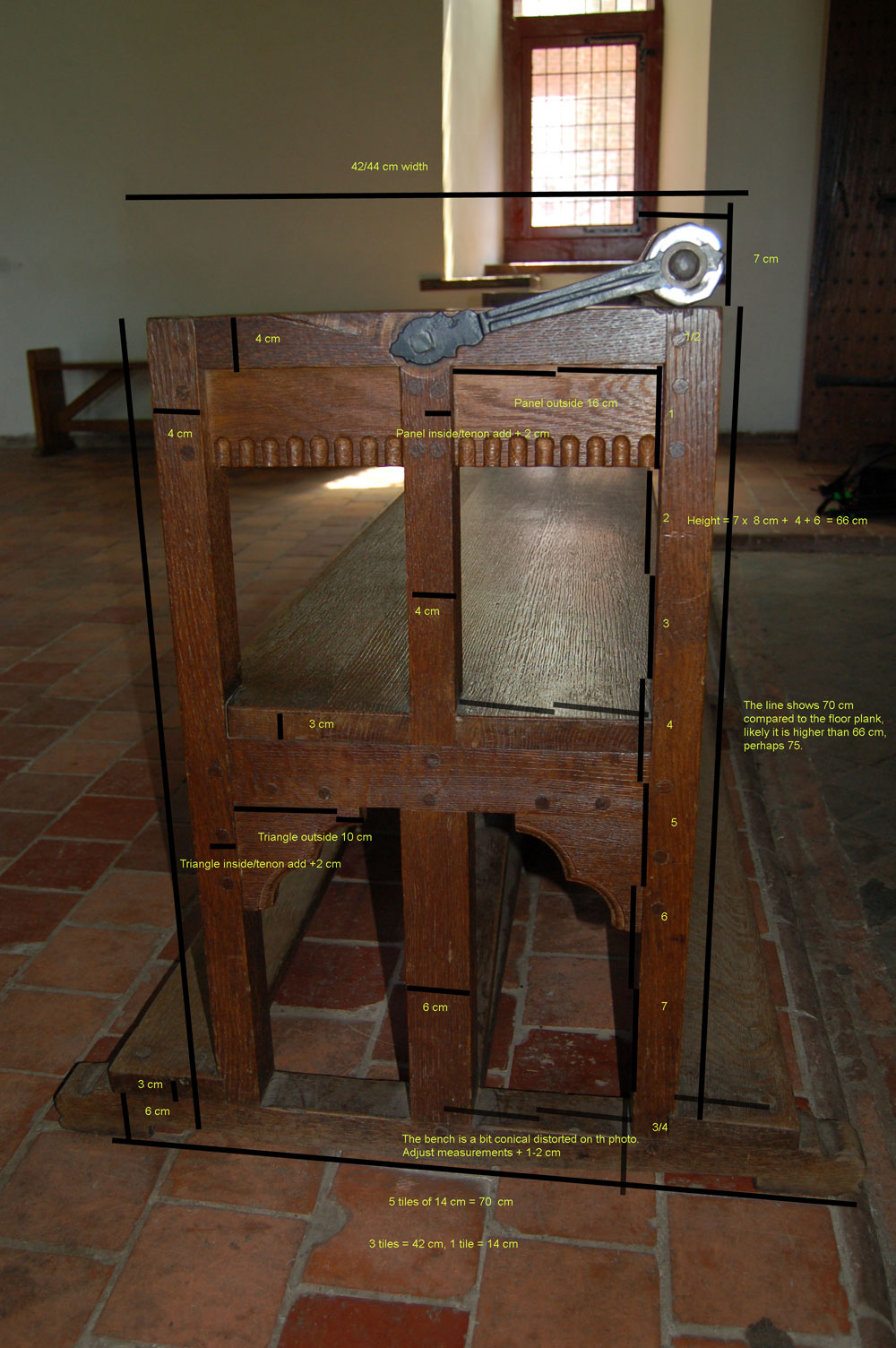

Drawing of the side measurements of the Loevestein strycsitten.

drawing of the front and bottom measurements of the strycsitten

 Scetch of the underside of the seating. The shaded part is cut out for the diagonal beam.

I thought I had measured everything of the strycsitten, unfortunately at home I discovered I had forgot some, e.g. the exact height. Using my photos, sizes of the floor tiles and my drawings I reverse engeneered the approximate missing measurements.
